Passenger Lift (3000 RE)

Passenger Lift (3000 RE)

Our machine room passenger elevator is one kind of high quality passenger elevator. It is best choice for such places as residence, business building, office building, business center and hotel etc. Elevators are typically and most economically manufactured in pre-engineered/standard sizes, but we have the capability to provide custom designs to fit code and customer requirements. Our Team works closely with you to ensure the final product fulfills expectations. We take tremendous pride in helping you plan and carry out successful projects by providing premium customer service and an unmatched personal touch. From low-rise economy models to high-speed elevators, we can provide an elevator package for any application.

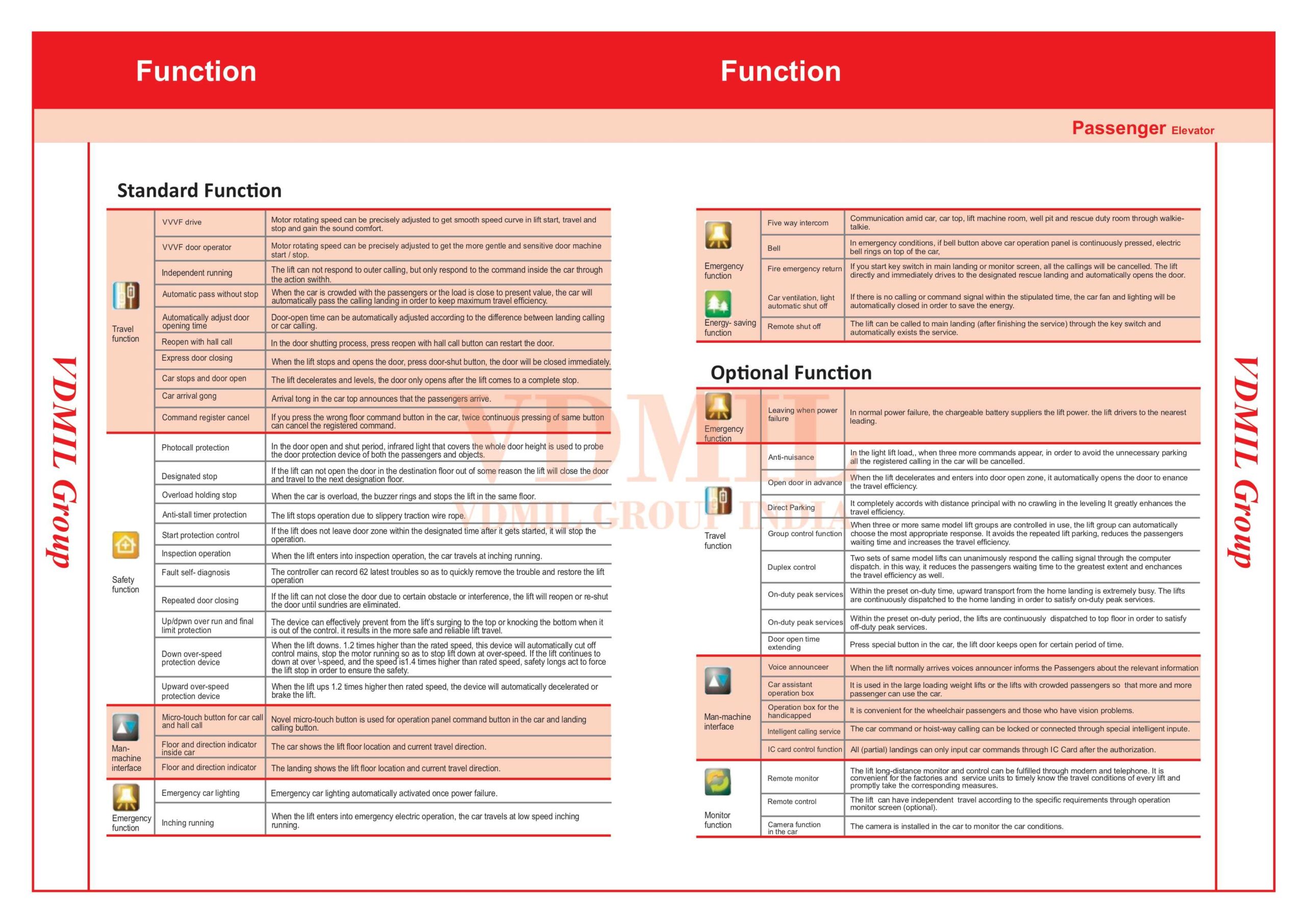

The elevators described are featured by:

– smooth run and improved accuracy of – stop;
– comfortable cabin and reduced noise level;
– vandalism-proof control panels and calling posts with illumination;
– indicators of the movement direction and cabin position;
– microprocessor-based control station;
– frequency regulator of the winch and door drive speed;
– LED lighting;
– indication of the cabin overload.

MACHINE ROOM ELEVATOR

Geared

Accord is proud to offer a complete line of Geared Traction Applications. The unique design of our traction elevators makes them ideal for buildings with up to 80m of travel. Known for their smooth ride and quick acceleration, they are designed to travel at speeds up to 1.5m/s.

Geared elevators are used in low-to-mid-rise residential & commercial buildings and for freight applications.

Gearless

Gearless elevators are the correct selection wherever building height or higher capacity (due to high population density) dictates the highest level of elevator performance. Sophisticated motor controls ensure high operating speeds and minimum floor-to-floor flight times, without sacrificing passenger comfort and safety.

Machine Roomless Elevator

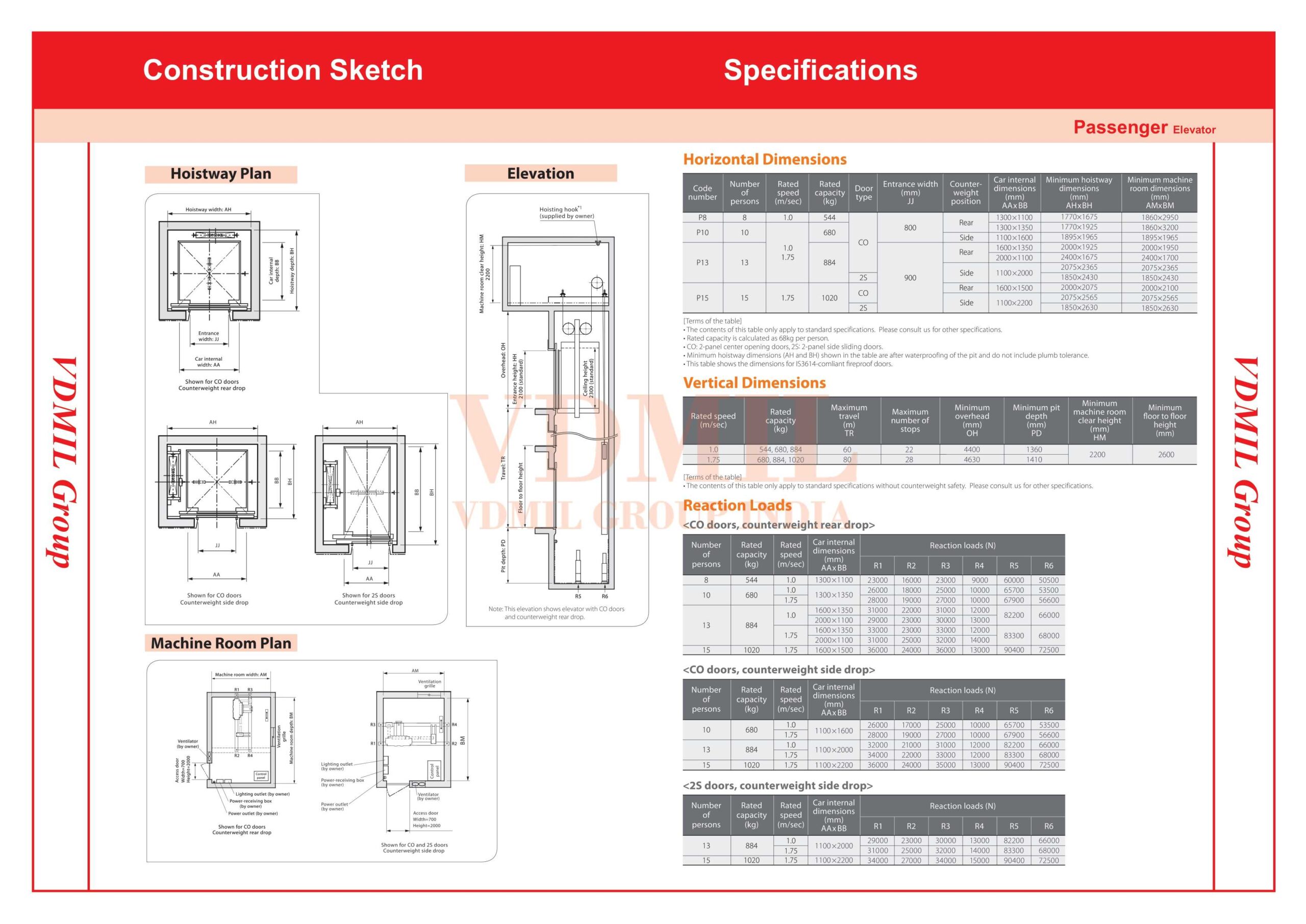

Passenger Capacity (kg) Speed (m/sec) Door Type Car Size (mm) Elevator Well (mm)
A X B E C X D
1 272 1.0 CO 1100 X 700 700 1800 X 1350
2S 1800 X 1400
2 408 CO 1100 X 1000 800 1800 X 1600
2S 1800 X 1700
3 544 1.0 1.5 1.75 CO 1300 X 1000 800 1900 X 1700
2S 1900 X 1750
4 680 C0 1350 X 1300 800 2000 X 1900
2S 2000 X 1950
5 884 C0 2000 X 1300 800 2700 X 1950
2S 1100 X 2000 1900 X 2500
6 1020 C0 1600 X 1500 900 2400 X 2200
2S 1100 X 2100 1900 X 2600

Speed

1.0

1.5

1.75

Standard car inside height (CH) mm

2200

2300

2300

Standard door height (HH) mm

2000

2100

2100

Maximum Travel (TR) in mm

60

80

80

Standard pit depth (PD)

1500

1650

2000

Standard over head height (OH)

4300

4500

4800

Minimum Floor to Floor Height in mm

2600

2600

2600
